Product Details:
|
| Product Name: | Automatic 2.5 Meters Width Pneumatic Spot Welding Machine | Nominal Power: | 150KVA X 5 |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Using | Feature: | Automatic Wire Feeding |
| Mesh Trip (mm): | Single Trip 3000 And No Limit On Return | Wire Diameter: | 3.0-8.0mm |
| Feeding Type: | Automatic | Panel Mesh Dimension: | 4000x2500mm |
| Dimensions: | 6500*3200*1700MM | Rated Duty Cycle: | 65% |
| High Light: | 2.5m Width Precision Spot Welder,Geoponics Precision Spot Welder,Huayang Wire Mesh Spot Welding Machine |
||
1. Product description

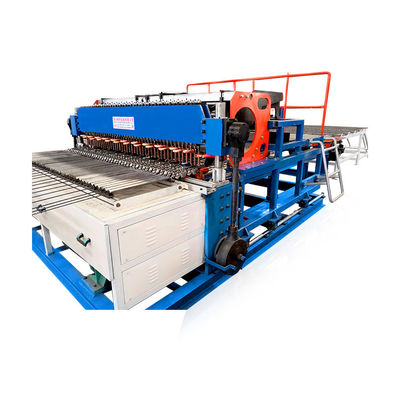

Automatic 2.5 meters width pneumatic spot welding machine is used for making wire mesh. The surface is smooth, the error of opposite angle line. It is evaluated the advanced welding mesh equipments by the mesh-welding expert. If you need the equipments of more than 2.5m and 6mm, you can order goods.the widest of panel is 2.5m. the diameter of welded is 2.5mm-6mm.welding transformer air is self-controlling. weld the form time contracts, welds at different times. the pressure of welding can change.the hole distance of mesh inputs the computer the hole distance changed automatic.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The automatic 2.5 meters width pneumatic spot welding machine extensively used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.
4. Advantages
a. We can design the welded wire mesh machine as your requirement.
b. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials.
c. User-friendly English manual for welded wire mesh machine using and maintaining.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
