|Product Name:||Automatic Panel Mesh CNC Pneumatic Spot Welding Machine||Feature:||Automatic Wire Feeding|
|Color Of Machine:||As Your Request||Wire Diameter:||3.0-8.0mm|
|Rated Duty Cycle:||±10%||Rated Capacity:||150KVA*9|
|Usage:||Weld Meshes||Overall Dimension:||26000*5000*1800mm|
|Welding Material:||Cold Roberts, Galvanized, Cold Rolled Ribbed Steel||Welding Speed:||50-70 Rows Per Minute|
microcontroller Pneumatic Spot Welding Machine,
springiness Pneumatic Spot Welding Machine,
CNC industrial spot welding machine
1. Product description

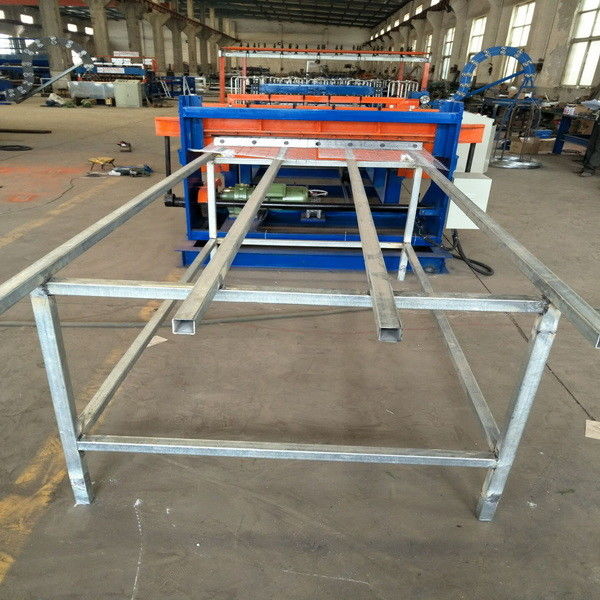

Automatic panel mesh CNC pneumatic spot welding machine is used for making panel mesh. Mesh pulling system is controlled by PLC,different cross wire pitch is available in one mesh panel,easy for operation. Each transformer is controlled by micro controller,more smart for setting welding time and welding current.
2. Technical parameter
|Meshi trip(mm)||Single trip 3000 and no limit on return|
|Std trans.spacing||>=25mm-stepless adjustable|
|Std long.spacing||>=50mm, and progressive increase by 50||>=100mm, and increase by 100|
|Std weld spots||31||41||51||27||32|
|Trans material||Straight bar/rod||Straight bar|
|Long material||Straight bar/rod|
|Control mode||PLC programming servo motor stepper|
|Mesh diagonal error||<=2|
|Mesh overall error||<=2|
|Weld material||Cold drawn wire, galvanized wire, cold rolled ribbed steel|
3. Application area
The automatic panel mesh CNC pneumatic spot welding machine can be used in mainly used for the construction mesh, breeding mesh, interior decoration etc.
a. To increase safety of machine, we protect every transmission part (chain, rotate) with protective cover; and add switch in the electric cabinet, so when there is any wrong operation, the cabinet and machine will immediately cut off to avoid any electric shock.
b. Cross wire hopper with loading capacity 100kg.
c. Electrodes with cooling water, good for wire 3-8mm.
d. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .
e. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.
