Product Details:
|
Product Name: | Automatic Black Wire CNC Spot Welding Machine | Feature: | Automatic Wire Feeding |
---|---|---|---|
Place Of Origin: | Hebei, China | Function: | Fence Panel |
Wire Diameter: | 1-3mm | The Control System: | CNC |
Key Selling Points: | High Rigidity | Warranty Of Core Component: | 1 Year |
Mesh Width: | 1500 2000 3300 | Type: | Fully Automatic |
High Light: | 1500mm Mesh Width Wire Spot Welder,Stepper Wire Spot Welder,wastebasket Spot Welding Machine For Wire Mesh |
1. Product description

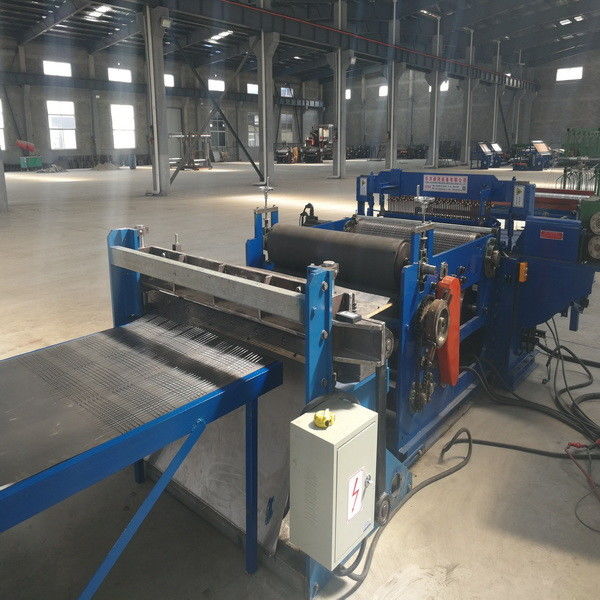

Automatic black wire CNC spot welding machine is used for making panel mesh. CNC Pneumatic-steel mesh welding machine:the synchronous control technique, welding time and separate welding are industrial machine control system management, control software is based on the windows operating system,man-machine interface, operation more intelligent and humane.Diameter wire using wire coil/straight feed,continuous feed, straightning,motor control,the mesh size is more precise than the stepper motor control. It can mesh with a wire diameter direction appear on different size mesh.
2. Technical parameter
Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
Std trans.spacing | >=25mm-stepless adjustable | ||||
Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
Std weld spots | 31 | 41 | 51 | 27 | 32 |
Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
Trans material | Straight bar/rod | Straight bar | |||
Long material | Straight bar/rod | ||||
Control mode | PLC programming servo motor stepper | ||||
Mesh diagonal error | <=2 | ||||
Mesh overall error | <=2 | ||||
Air pressure | >=0.7 | ||||
Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel |
3. Application area
The automatic black wire CNC spot welding machine can be used the fields of industry , agriculture, farming, breeding, construction, transport, mining and other areas. Machines protective shelter, animal and livestock fence, landscaped fence,retaining Window column, crossing fences, poultry cages, egg baskets, food basket, wastebasket and decoration.
4. Advantages
a. This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.
b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.
c. We can design the welded wire mesh machine as your requirement.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre strainghtened and cut to length. We are capable to produce fully automatic machine.
