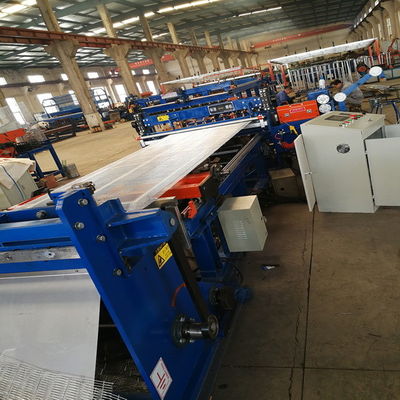

Wire Dia 1mm Auto Stacking CNC Welding Equipment , Servo Drive Iron Net Making Machine

Wire Dia 1mm Auto Stacking CNC Welding Equipment , Servo Drive Iron Net Making Machine
Wire Dia 1mm Auto Stacking CNC Welding Equipment , Servo Drive Iron Net Making Machine

Large Image :  Wire Dia 1mm Auto Stacking CNC Welding Equipment , Servo Drive Iron Net Making Machine

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Wire Dia 1mm Auto Stacking CNC Welding Equipment , Servo Drive Iron Net Making Machine

Description
Product Name: Automatic Iron Net CNC Spot Welding Machine Feature: Automatic Wire Feeding
Wire Diameter: 1-3mm The Control System: CNC
Key Selling Points: High Rigidity Warranty Of Core Component: 1 Year
Cross Wire: >25mm Adjustable Overall Dimension: 26000*5000*1800mm
Welding Material: Cold Roberts, Galvanized, Cold Rolled Ribbed Steel
High Light:

Wire Dia 1mm CNC Welding Equipment

,

Auto Stacking CNC Welding Equipment

,

Servo drive Iron Net Making Machine

Automatic Iron Net CNC Spot Welding Machine

1. Product description

Automatic iron net CNC spot welding machine is used for making panel mesh. Automatic wire mesh welding machine production line is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity,high automatic and simple operation.Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful,and the automatic stacking is neat. Save a lot of labour and space.


2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic iron net CNC spot welding machine can be used as in constructions. Whether for reinforcement of concrete in the foundations or for thinner construction panels inside the houses.

4. Advantages

a. We choose well known brand from home and abroad to ensure the entirety steel property to avoid any transformation, transposition happen during transportation, installation process as to affect the precision of the machine.

b. Servo motor control, mesh size will be more precise than the stepper motor.

c. We can design the welded wire mesh machine as your requirement.

d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

e. PLC controlled. Easy to set and control. It makes this machine more intelligent and reasonable.
