Product Details:
|
| Product Name: | High Speed Automatic Fence Mesh Welding Machine | Key Selling Points: | High Productivity |
|---|---|---|---|
| Electrodes: | Single Or Double Row | Mechanical Specifications: | According To Customer Requirement |
| Width: | 1/1.2/1.5/2/2.5m | Line Feeding: | Coil Feeding,automatic Welding |
| Rated Duty Cycle: | 4kw | Welding Way : | Silicon Controlled Synchronous Control |
| Suitable Wire To The Machine: | Low Carbon Steel Wire | ||
| High Light: | 6 feet fence mesh welding machine,synchronous control fence mesh welding machine,6 feet mesh fence welding machine |
||
1. Product description

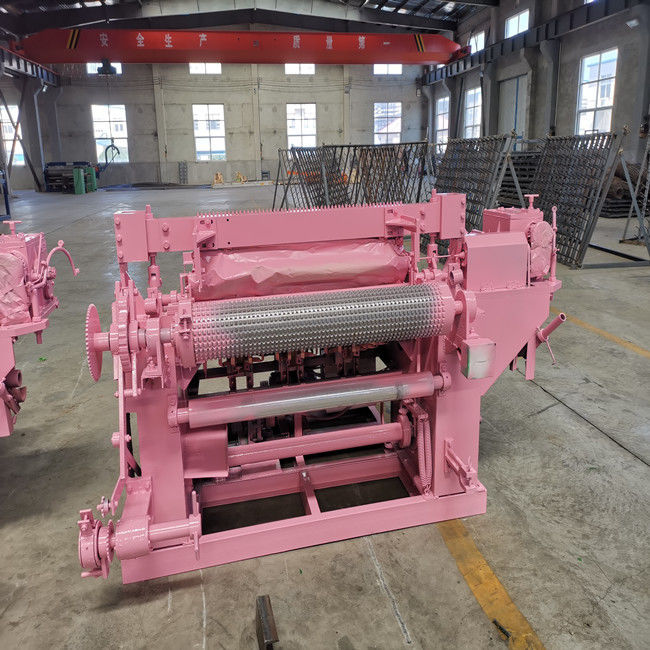

High Speed Automatic Fence Mesh Welding Machine is used for making wire mesh. Sending wire with full automatic, Applicable to low-carbon steel wire body machine, design reasonable, less noise, easier operate, non-polar adjust the number of welding.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
High Speed Automatic Fence Mesh Welding Machine are used for the production of dimensionally accurate meshwork for a wide variety of applications. Wire mesh may be used to produce shop, exhibition- and warehouse equipment as well as trays for domestic and overseas appliances.
4. Advantages
a. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
b. The welding head is made of chromium-zirconium copper, with good electrical conductivity, hard material and abrasion resistance.
c. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor.
